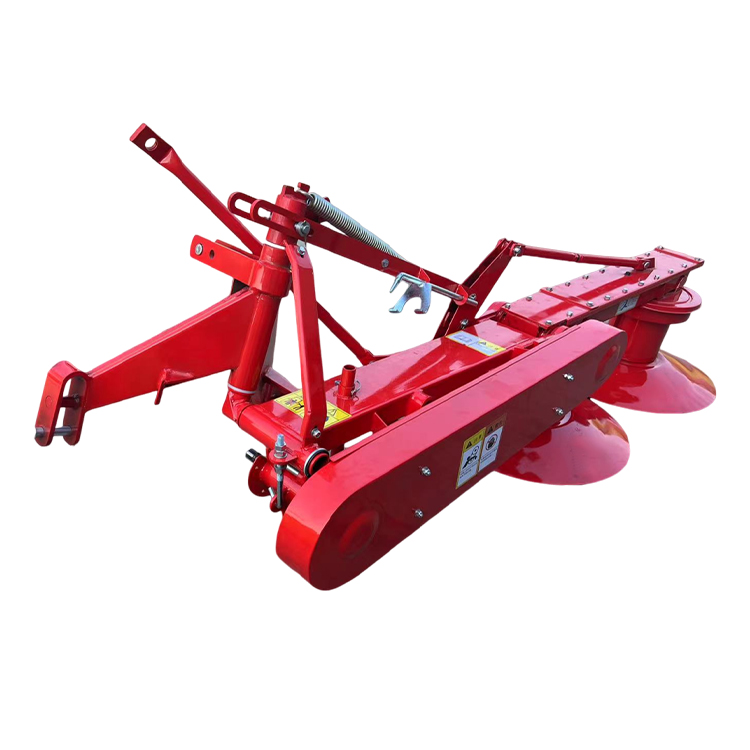

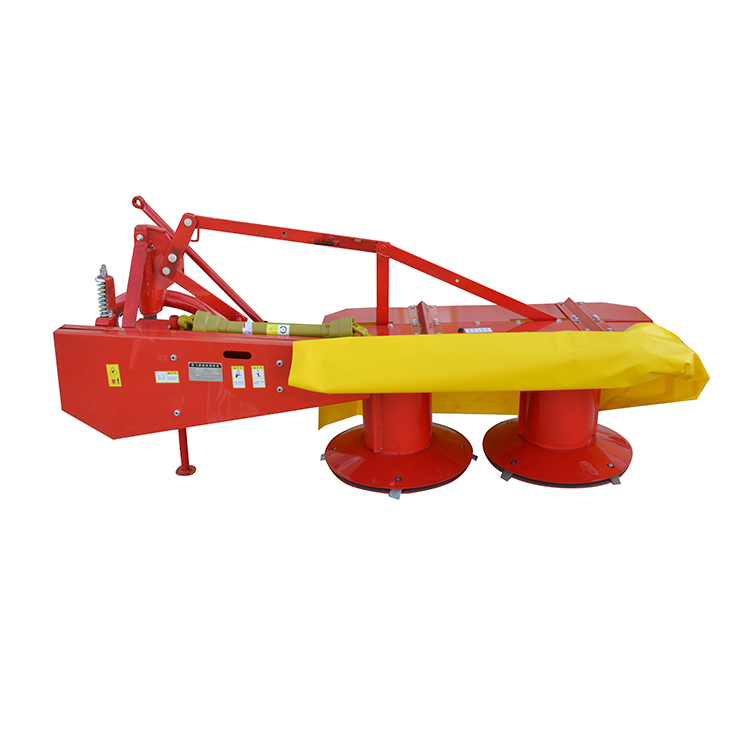

3 Point Disc Mowers

3 Point Disc Mowers produced by Shuoxin can adjust the cutting height according to crop needs and field conditions, and the product's cylindrical roller will rotate, cutting the grass cleanlyas you move forward. Monitor cutting quality and adjust speed if necessary. Remember to lift the product at the end of each line to prevent damage.

How to use the 3 Point Disc Mowers

The 3 point disc mowers are efficient agricultural tool, mainly used for cutting grass and harvesting grass. To get the most out of this tool, here are some key steps and considerations:

Secure connection:

First, make sure the 3 point disc mowers are securely attached to the tractor's three-point suspension system.

Adjust the cutting height:

Adjust the cutting height of the mower according to crop needs and field conditions.

Starting Power Take-off (PTO) :

Activate the tractor's power take-off device to activate the rotary blades of the roller mower.

Stable operation:

The tractor is operated at a steady speed, usually between 5-10 km/h, adjusted according to the terrain and the density of the grass.

Monitor cutting quality:

During the mowing process, the cutting quality is monitored and the speed is adjusted as needed.

Avoid damage:

At the end of each row, lift the mower to prevent damage.

Regular maintenance:

Regular maintenance, including sharpening the cutting blades and lubricating key components, ensures that the mower maintains peak performance throughout the harvest season.

Understand the components of 3 point disc mower

The efficient operation of the roller mower depends on the following key components:

Rotating drum:

The cylindrical structure containing the cutting blade is the main working part of the lawn mower.

Cutting blade:

A sharp blade attached to a roller that cuts the grass.

Drive system:

Power is transferred from the PTO of the tractor to the drum to make it spin.

Frame:

Provide structural support and attachment points to ensure the stability and durability of the mower.

Tracks:

Allow the mower to slide on uneven terrain to improve operational flexibility.

Safety protection:

Protect operators from debris and moving parts to ensure safe operation.

By understanding these key components, you can better understand and maintain your roller mower, thereby improving its efficiency and longevity.

If you want to use a three-point disc mower to cut grass, just follow these steps:

Start the tractor first: Turn the tractor on and let it run for a little while, maybe a few minutes, so that the engine is warmed up and ready for work.

Slowly engage the PTO: The power output unit, you have to slowly and steadily engage it while the tractor RPM is low. This is done so that the power can be transmitted smoothly, without putting too much stress on the transmission system at once.

Then gradually increase the speed: Once the PTO is engaged, slowly increase the speed to the recommended 540 RPM or 1000 RPM. At this speed, the mower has enough power to cut grass efficiently.

Then put the mower down: Adjust the 3 Point Disc Mowers to the right working height and make sure it is firmly attached to the tractor and aligned.

Start to drive slowly forward: Slowly and steadily drive the tractor forward. This way you can see how the mower is cutting and make timely adjustments if needed.

Finally adjust the speed: When the mower starts to cut the grass smoothly, you can gradually increase the speed of the tractor to find a speed that is most suitable for cutting the grass, so that the grass is more efficient.

Mastering the use of the 3 Point Disc Mowers enhance your forage harvesting efficiency. By understanding the equipment, preparing thoroughly, and employing proper operating techniques, you can achieve clean, uniform cuts across various terrains and crop conditions. Regular maintenance and attentive operation will ensure your product remains a valuable asset in your agricultural operations for years to come. If you want to get more information about this product, you can contact us at mira@shuoxin-machinery.com.
