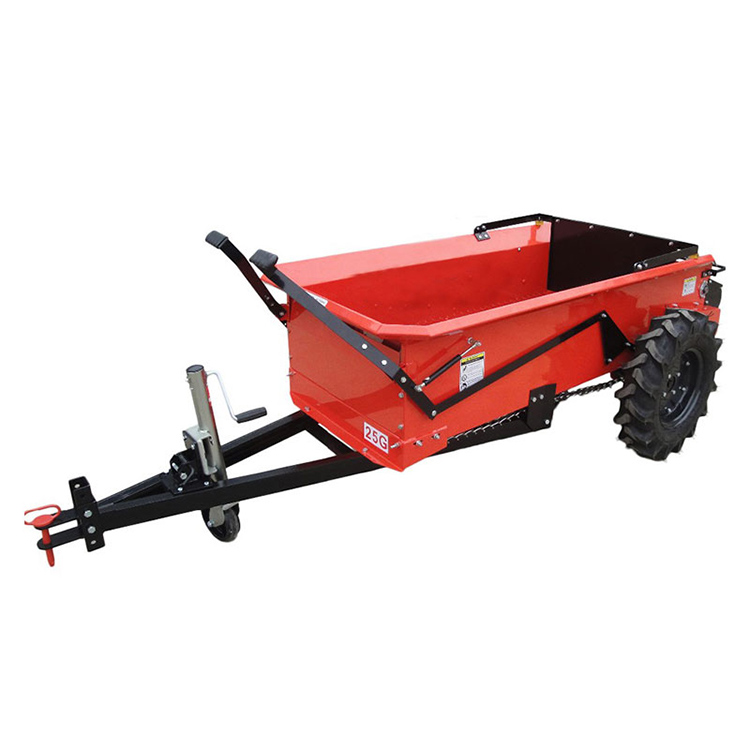

Agricultural Manure Spreader

Agricultural manure spreader is an efficient and indispensable agricultural machinery and equipment, which plays a vital role in modern agricultural production. The main function of the machine is to spread decomposed manure, compost, manure and other types of organic fertilizers in a uniform and precise manner over a wide area of farmland.

Product parameter

Capacity(Heaped)	0.6-1CBM
HP Range	≥15
Drive System	Wheel Drive
Apron Drive System	Chain&Sprocket
Box Dimensions(L×W×H)	1700*700*400mm
Dimensions(L×W×H)	2100*980*700
Weight	215kg
Tires	600-12
Paddles	10
Floor	Rustproof Tongue and Groove Poly
Box	Corrosion Resistant Cor-Ten Weathering Steel-Powder Coated

Working principle and structure

Working principle: The agricultural manure spreader is usually used with the tractor, and the conveyor chain inside the carriage is automatically transported backward using the power output of the tractor. Then, the fertilizer is broken up and evenly scattered back to the field by a high-speed rotating scattering wheel.

Structure: mainly includes traction frame, frame welding, conveying system, fertilizer system, hydraulic system, ground wheel mechanism and other parts. Among them, the fertilizer system is the key part, which is usually composed of the sprinkling wheel, regulating valve and other components.

The agricultural manure spreader is usually used in conjunction with the tractor, which automatically transports the fertilizer backward through the conveyor chain inside the carriage driven by the power output of the tractor, and breaks and evenly scatters the fertilizer through the high-speed rotating scattering wheel. This design not only makes the operation easier and faster, but also ensures the accuracy and uniformity of fertilization.

In order to ensure the normal operation of the agricultural manure spreader and extend its service life, farmers also need to pay attention to some details during use. For example, read the instructions carefully before use to understand the performance and operation of the machine; In the process of use, agricultural manure spreader is necessary to regularly check whether the components are in good condition and whether the fasteners are loose; After the end of the operation, the residual fertilizer and debris on the machine should be cleaned up in time.
